Description

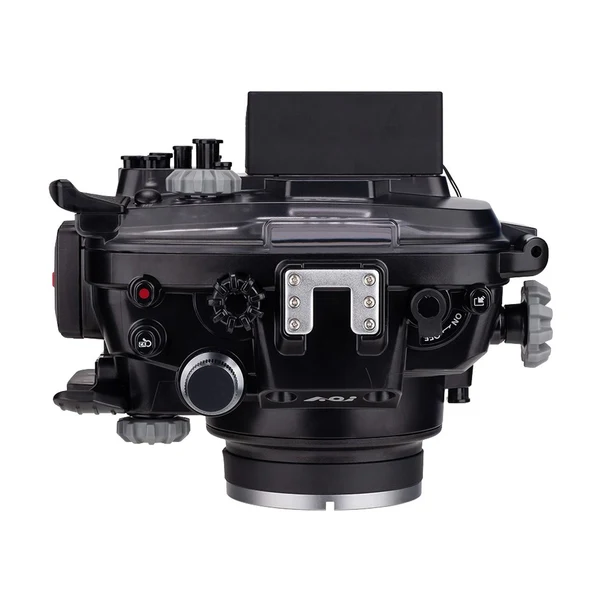

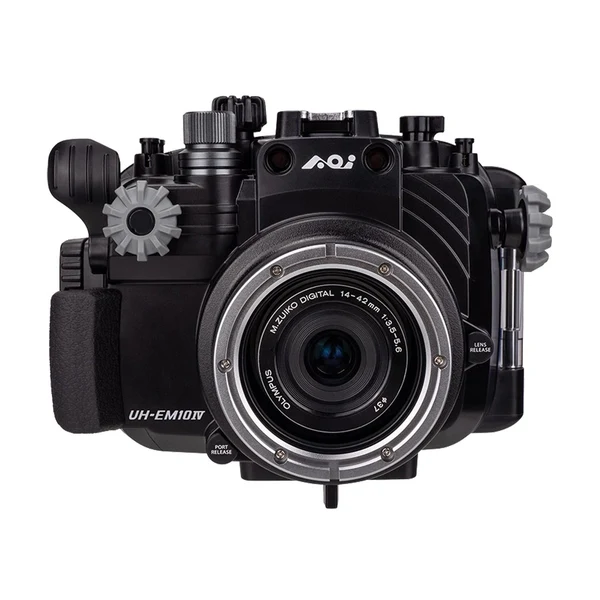

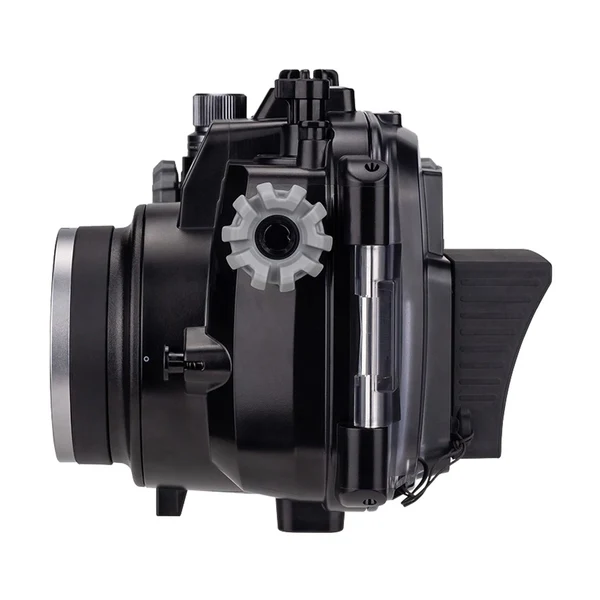

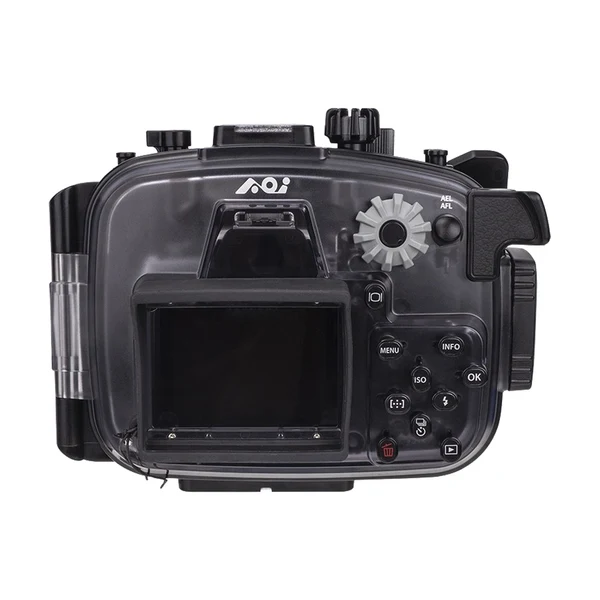

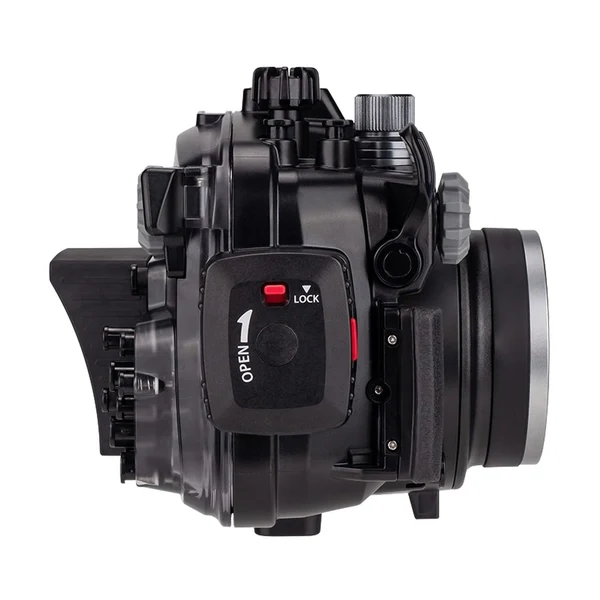

AOI Underwater Housing Olympus-OM EM10 Mark IV
The ideal Camera and Housing setup to go beyond the point and shoot TG7 camera without costing the earth! The AOI Underwater Housing Olympus-OM EM10 Mark IV is for the Olympus OM-D E-M10 Mark IV camera. The housing package includes the Flat Port (AOI-FLP-06) and Lens Gear Ring (AOI-LG-OM-1442EZ) for the Olympus OM-D E-M10 Mark IV with the Olympus 14-42mm EZ lens.
All Housings must have a Port (included in this package) to make it waterproof. A range of ports are designed for specific lenses, and this housing can take different ports when it’s time to step up. Other compatible Olympus lenses can be used with the appropriate AOI/Olympus PEN Mount Port and Extension.
Compact and yet uses all the features of the Olympus OM Micro 4/3rds camera, a step up from the Olympus TG7 and housing without costing a lot more.
Features include a Smart Control System to manage the built-in integrated flash trigger, Vacuum Analyzer and Wet Detection system and complete use of all the controls of the OM EM10 Mk IV camera
To trigger external strobes this housing is supplied with the AOI Hot Shoe (AOI-HSC-02) which connects to the camera hot shoe and via a fibre optic cable (cable not included) will trigger underwater strobes from AOI, Sea&Sea, Ikelite, Inon etc. (available separately) If you wish to use the Olympus RC Flash Mode for perfect camera controlled exposed images the AOI UCS-Q1RC Ultra Compact Strobes is required.
AOI Underwater Housing Olympus-OM EM10 Mark IV specifications:
| MODEL NUMBER | AOI-UH-EM10IV-BLK |
| DESCRIPTION | AOI Underwater Housing Olympus-OM EM10 Mark IV |
| HOUSING COLOR | Black |
| COMPATIBLE CAMERA MODELS | Olympus OM System OM-EM10 Mk IV camera |
| MAIN MATERIAL | Housing Body: Polycarbonate |
| DEPTH RATING | 45 Meters |
| LENS PORT SYSTEM | AOI / Olympus PEN Ports System |
| BUILT-IN LED FLASH TRIGGER | Compatible with a) Manual Flash Trigger (with and without Pre-flashes Functions) b) Olympus RC Mode (TTL AUTO, MANUAL, FP TTL AUTO, FP MANUAL) |
| WATER LEAKAGE PROTECTION | Built-in Vacuum Analyzation and Wet Detection System (VWS) |
| BATTERY POWER | Rechargeable Lithium Polymer Battery (3.7V 220mAH) |
| BATTERY CHARGING | By USB Charger DC5V, 0.5A (not included) Approx. 1.5 Hours for a full charge |
| BATTERY OPERATION TIME | Approx. 2 Days (Based on 2 Dives/Day and 1 Hour/Dive) |
| DIMENSIONS | 177.9mm (W) x 139.8mm (H) x 151.2mm (D) |
| WEIGHT | On Land: Approx.835 g (Only included the Housing Body and Flat Port) |
| STANDARD ACCESSORIES | Flat Port (AOI FLP-06); Lens Gear (AOI LG-OM-1442EZ) |
| USB Type-C Charging Cable; LCD Monitor Hood | |
| Spare O-Ring for Vacuum Valve Protection Cap x1pc. (AOI SRVV-01) | |
| Vacuum Pump (AOI VP-02); Spare Main Seal O-Ring x1pc. (AOI SOR-04) | |
| Spare Main Seal O-ring x 1pc. (AOI HOR-01); Silicone Grease (AOI SIGR-5) Lanyard (AOI LYD-01); Port Front Cap for M67 Thread (AOI LFC-01) | |
| Silica Gel (AOI SIGE-3) x3pcs.; | |
| Port Rear Cap for PEN Mount (AOI PRC-02); O-ring Remover (AOI ORR-02) |
