Description

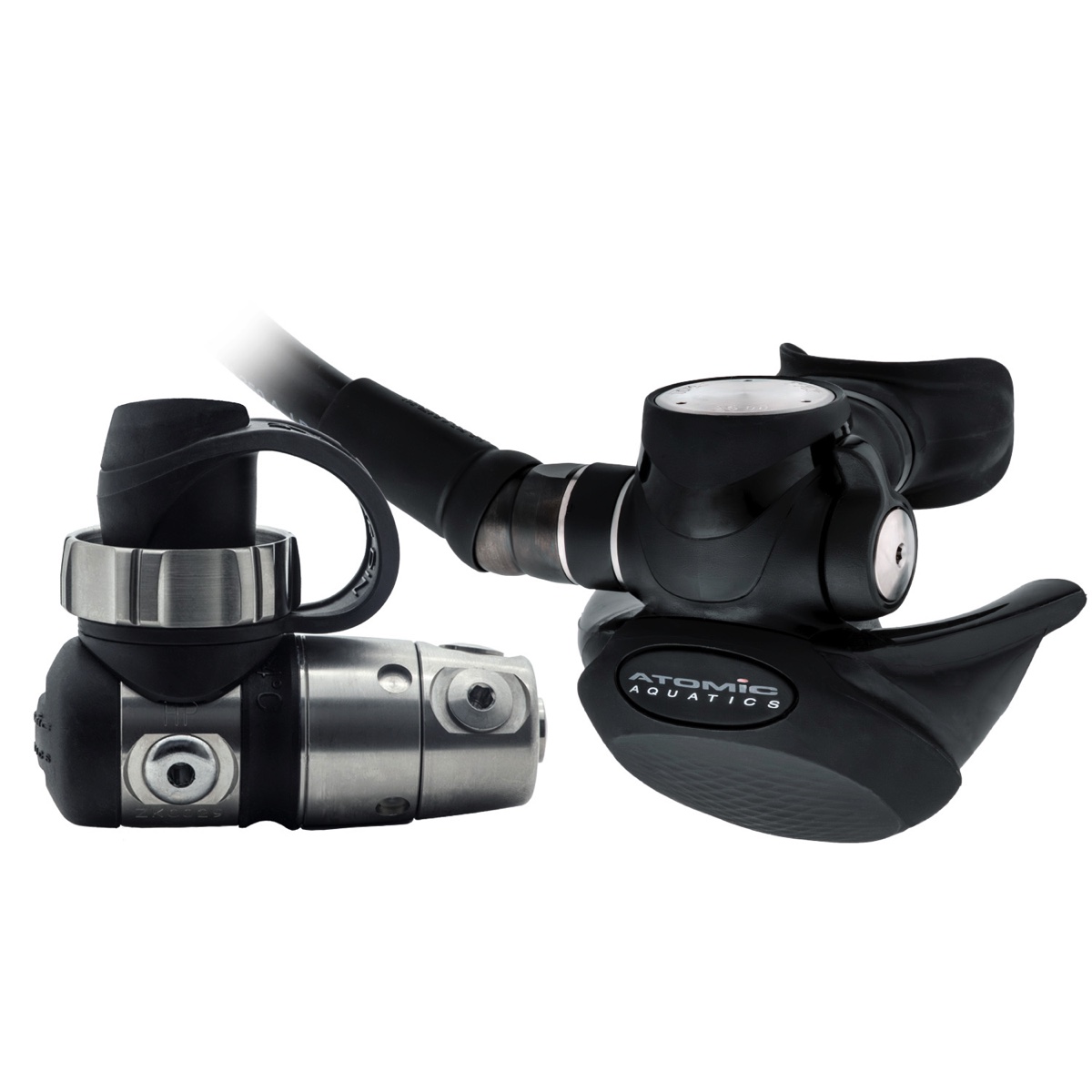

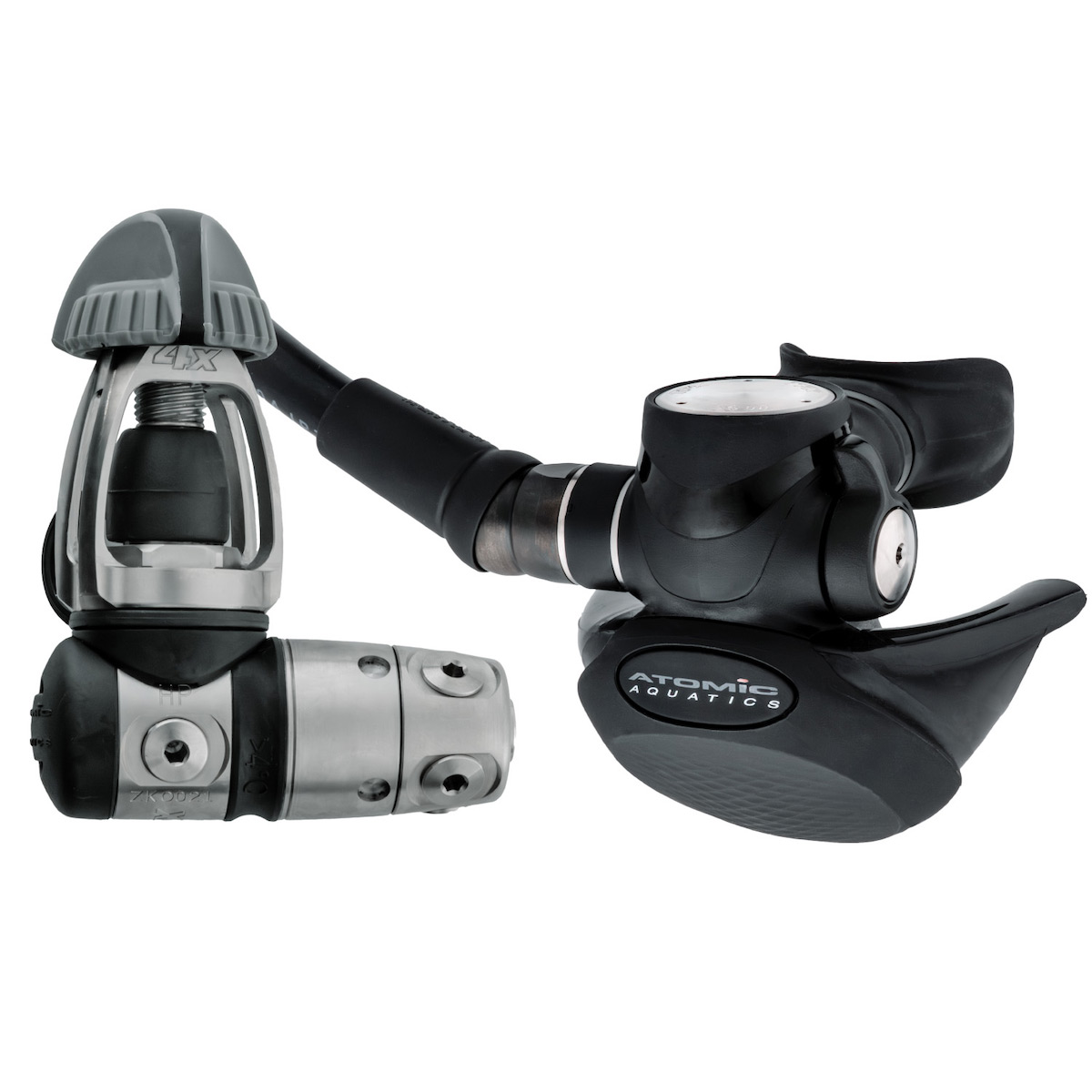

Atomic Aquatics’ engineers completely reimagined the unconventional front exhaust regulator with the new Atomic TFX Regulator. As a result, they created one of the most natural and effortless breathing experiences available. Unlike traditional rear exhaust regulators, which increase breathing resistance in certain positions—like when looking up—the TFX delivers smooth, consistent airflow in any diving posture. Furthermore, this regulator dramatically reduces inhalation effort, outperforming all other regulators on the market. Simply put, this is a game-changing product no diver should miss.
Front Exhaust Valve Positioning
Atomic Aquatics engineers carefully deconstructed every component of earlier front exhaust regulators to rethink their functionality and performance. This deep dive led to the creation of the unique Atomic TFX Regulator. By placing the exhaust valve at the center of the inhalation diaphragm—and mounting both at the front—they unlocked enhanced breathing performance and superior dryness. Traditional and conventional designs simply can’t match it.
IMPROVED PRESSURE DIFFERENTIAL & WATER COLUMN EFFECT
In extreme diving positions—such as looking upward—the TFX keeps the exhaust valve and diaphragm perfectly level, eliminating pressure differences. As a result, any water that enters collects at the exhaust valve and is easily expelled with each breath. Unlike conventional regulators, which place the diaphragm above the mouthpiece and create a larger water column effect, the TFX minimizes this issue. It remains easy to inhale from, regardless of your position. This makes the TFX far less sensitive to the shifting attitudes divers experience underwater.
CASE ARCHITECTURE & EXHAUST DEFLECTION
The bold TFX design posed significant engineering and design challenges, leading to an all-new case architecture. Engineers developed a complex blend of fluid, natural geometries that fit seamlessly within the regulator’s narrow-width case and front cover. These unique forms weren’t just for style—they served essential functions. For example, the team created an innovative way to route exhaust from the front to the rear of the regulator. Form truly follows function, with a sweeping, flexible front purge cover and extended soft silicone exhaust deflectors that direct bubbles away from the diver’s field of view
The Atomic TFX Regulator is fabricated with many iconic Atomic Aquatics materials and performance
FEATURES
- All-Titanium First and Second Stage metal components
- Seat Saving Dynamic Orifice
- Low-friction cap at the cam surface
- Venturi Nozzle gear-driven tuning switch
- Variable Lift Cam
- New 4X Yoke connection first stage – one turn secures it to the tank
- Comfort Swivel Hose now with less friction and smoother movement

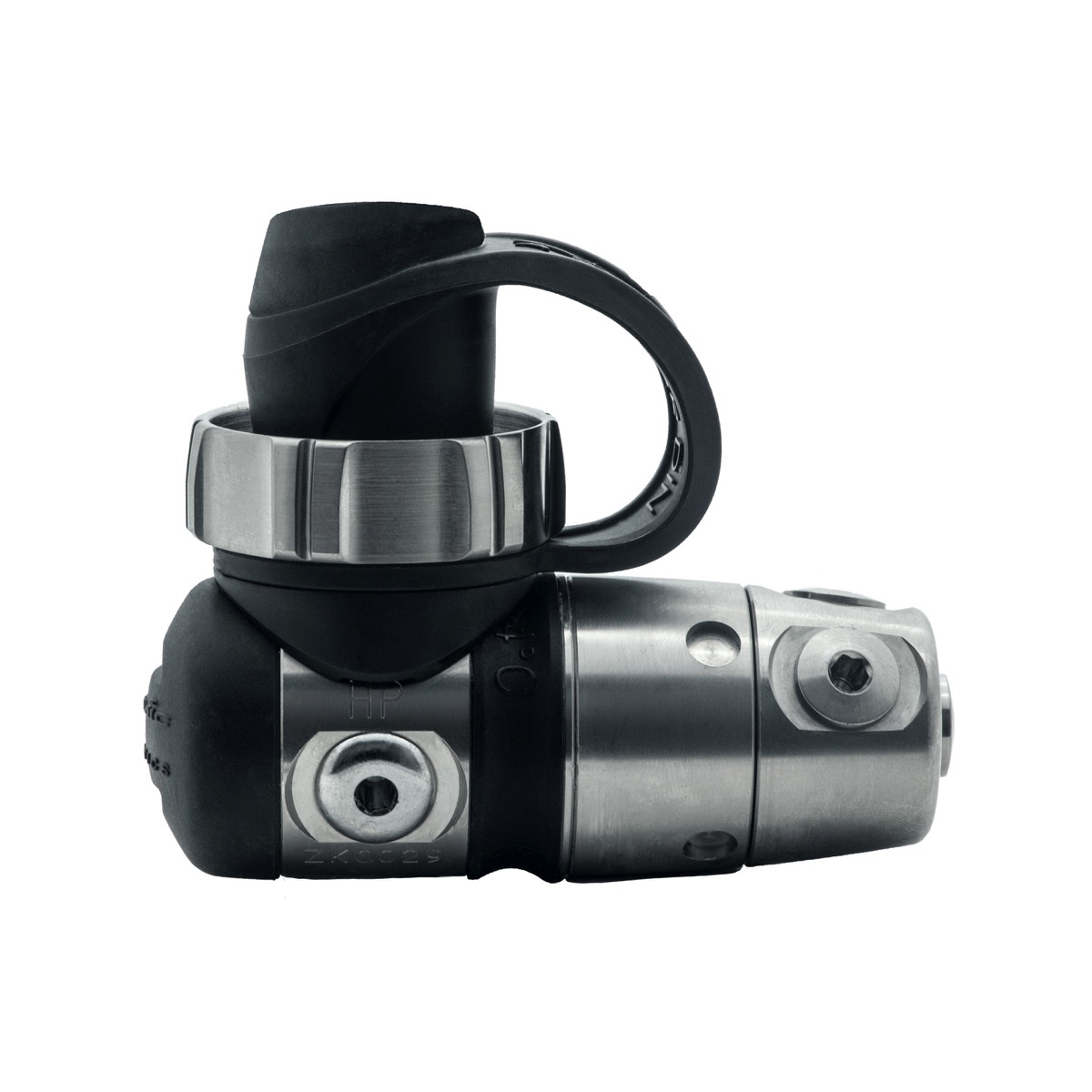

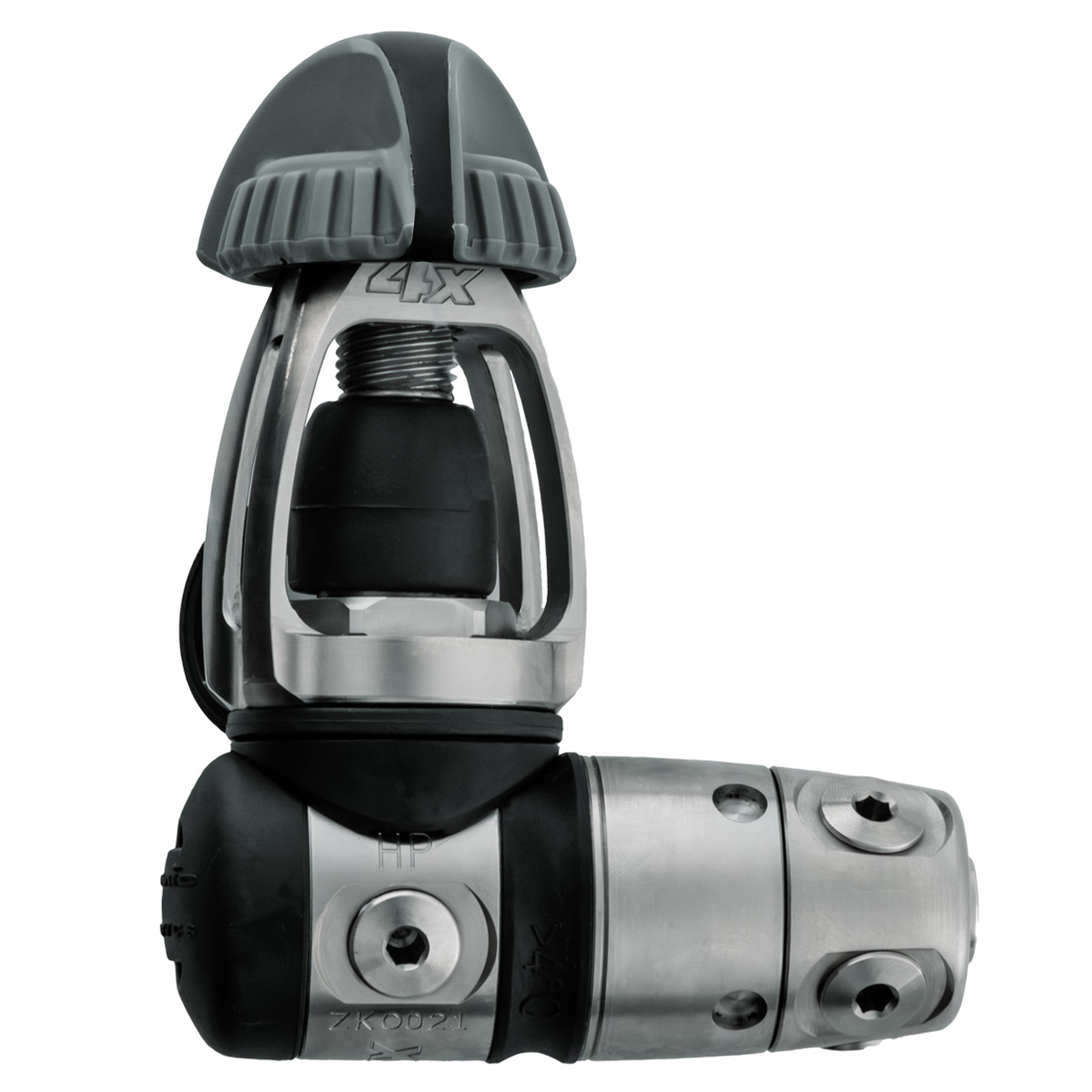

ATOMIC TFX REGULATOR YOKE FIRST STAGE FEATURES
- Precision-machined from solid Titanium alloy bar.
- Unique 4X Yoke design – tighten or remove from tank with one turn.
- Minimalist yoke design is optimized to use the least amount of material for the lightest weight possible.
- Atomic Aquatics exclusive balanced Jet Seat high-flow piston.
- Freeze-protected and factory-sealed to prevent outside contamination from silt and sand.
- Nitrox ready – approved for non-dedicated EAN use with mixtures up to 40%.
- Ports: 2 HP fixed / 5 LP on swivel cap.

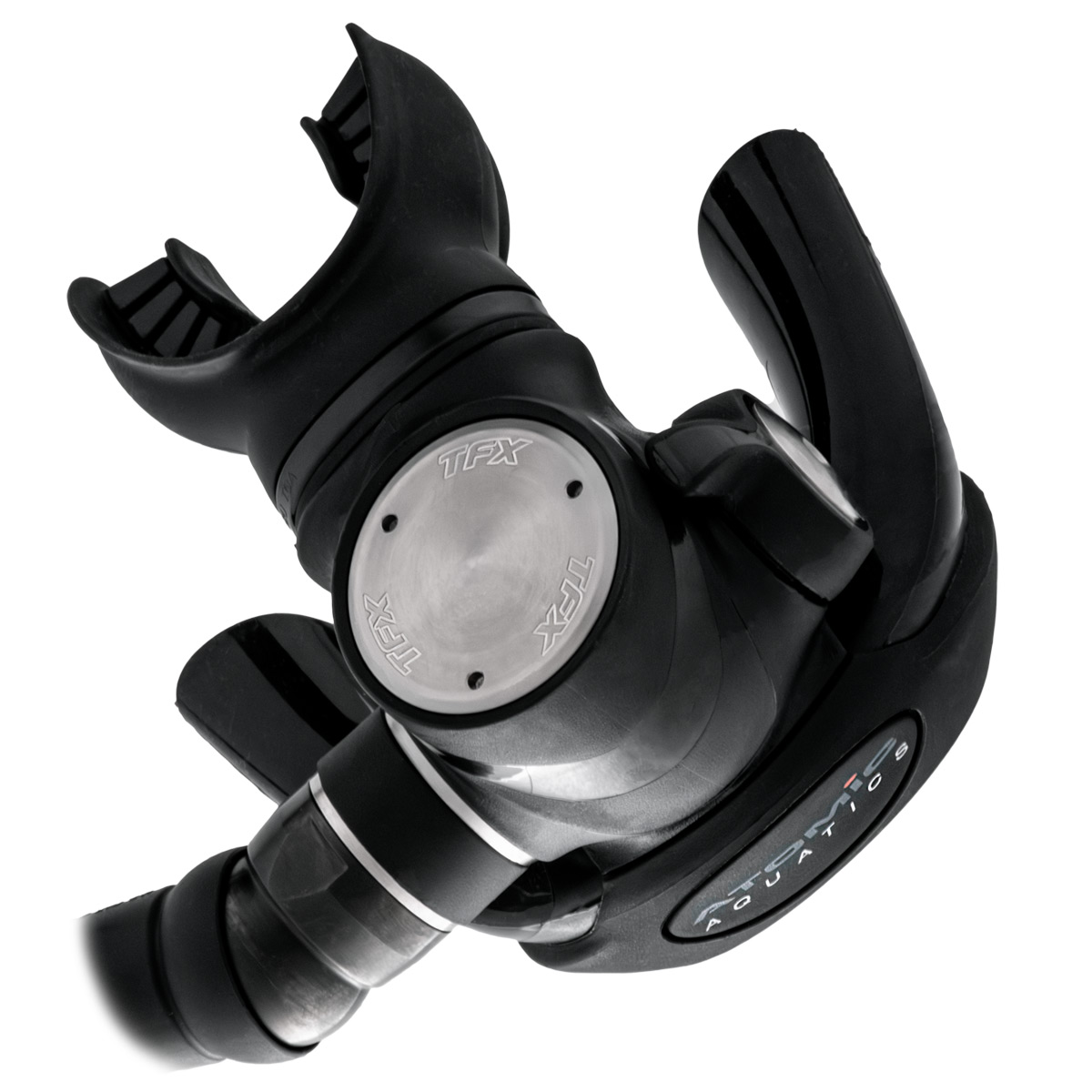

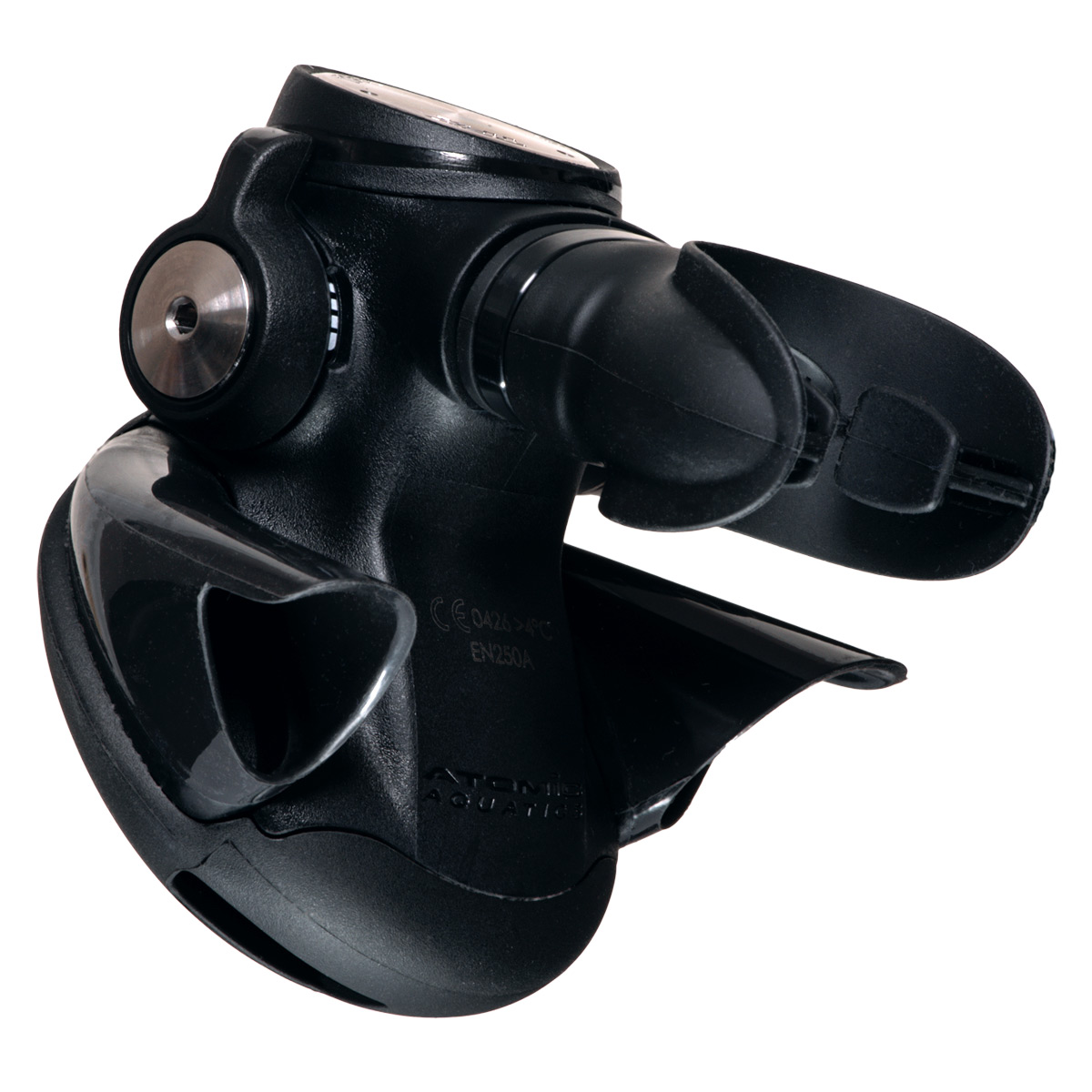

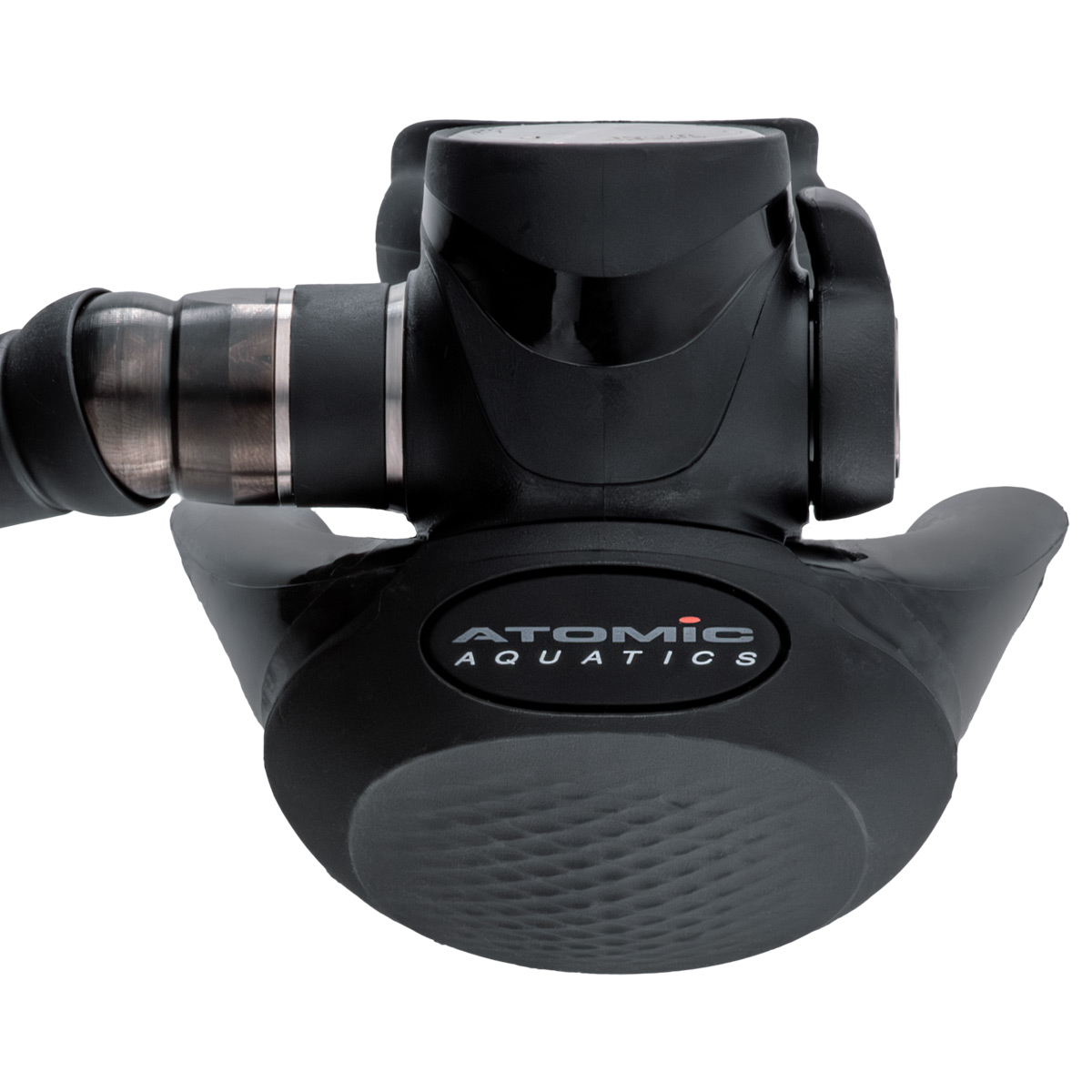

ATOMIC TFX REGULATOR SECOND STAGE FEATURES:
- Fresh take on front exhaust design with exhaust valve and inhalation diaphragm both mounted in the front center of the regulator.
- Bold narrow-width case architecture with fluid lines and sweeping flexible front purge cover that integrates seamlessly with exhaust deflectors.
- Variable Lift Cam with near frictionless action lever increases lift at high demands to provide high flow with low inhalation effort.
- Atomic Titanium Seat Saving Dynamic Orifice automatically retracts away from the seat when not under air pressure to extend service life, maintain crisp like-new performance and prevent damage during storage.
- Adjustable venturi nozzle gear-driven tuning with soft-touch lever.
- Low-friction cap at the cam surface.
- Coaxial diaphragm and exhaust valve for 360º breathing effect.
- Hose features the Atomic exclusive patented all-Titanium Comfort Swivel now with less friction and smoother movement.
- Extended silicone exhaust tee is uniquely designed with a sweeping flexible front purge cover and soft rubber exhaust deflectors that route the exhaust away from and behind the divers field of view.
- Dual silicone comfort fit mouthpiece with tear-resistant bite tabs – both comfortable and durable.
- Deluxe padded travel bag
Also available is the Outstanding Atomic T3 regulator
Service and Warranty
The Atomic Aquatics Limited Lifetime Warranty is not contingent on proof of annual service.
Atomic Aquatics offers the most courageous warranty in the dive industry. Your regulator is the soul of your dive system. You don’t need to worry about it performing…especially if you are in some remote location where competent repair is a remote concept. That’s why every Atomic Aquatics regulator is built using materials and processes that resist corrosion and minimize maintenance – so you can log lots of dives over a long time with supreme confidence. While every regulator benefits from annual servicing, Atomic Aquatics regulators do not require it. So you can worry less and dive more with Atomic Aquatics.
